The Complete Guide to Understanding Carbide Inserts Charts

When it comes to machining and manufacturing, carbide inserts are invaluable tools that drive precision, efficiency, and productivity. Whether you're in tool-making, precision assembly, or advanced materials manufacturing, utilizing the right carbide inserts—and understanding their charts—is critical for achieving exceptional results.
This guide will walk you through the basics of carbide inserts, explain how to interpret carbide insert charts, and offer insights into selecting the right tools for your precision machining needs.
What Are Carbide Inserts?
Carbide inserts are cutting tools used in industrial machining operations such as milling, turning, and drilling. They are known for their durability, heat resistance, and ability to make accurate, clean cuts on hard materials. Carbide inserts are often used with CNC machines and lathe tools to deliver high precision and extended tool life.
Key benefits of carbide inserts include:
Versatility: Ideal for cutting a wide range of materials, including steel, aluminum, and superalloys.
Cost-effectiveness: While the upfront cost may be higher, their long lifespan reduces replacement frequency.
Consistency: Ensures reliable and predictable performance in high-volume production environments.
To maximize the full potential of carbide inserts, it's necessary to understand the details provided by carbide insert charts.
An Overview of Carbide Insert Charts
Carbide insert charts provide the necessary specifications and guidelines for choosing the right insert for your machining application. These charts break down key details such as size, shape, material grade, and cutting recommendations.
Key Elements of a Carbide Insert Chart
Carbide insert charts include several critical variables that determine an insert's performance and application suitability:
Insert Shape
Common shapes include square, triangular, diamond, and round inserts. Each shape is suited for specific machining tasks:
Square Inserts offer multiple cutting edges and are commonly used in roughing operations.
Triangular Inserts are versatile and enable precision cutting in tight spaces.
Round Inserts are ideal for heavy-duty roughing and finishing.
Insert Size
Denoted by a numeric value, the size directly affects cutting depth and stability. Larger inserts handle deeper cuts but may compromise precision in tighter spaces.
Insert Grade
The material composition and coating of the insert determine cutting performance, wear resistance, and heat tolerance. For instance:
Uncoated Carbide is ideal for non-ferrous materials like aluminum.
Coated Carbide (with titanium nitride or aluminum oxide) is perfect for steel and superalloys.
Rake Angle
Represents the angle of the cutting edge.
A positive rake offers smoother cuts and is suited for lightweight, precise machining.
A negative rake provides durability, ideal for rough cutting and heavy loads.
Cutting Recommendations
Charts specify the ideal cutting speed (measured in surface feet per minute), feed rate, and depth of cut for different materials. This ensures optimal performance and reduces tool wear.
How to Read a Carbide Insert Chart
Carbide insert charts may seem complicated at first, but breaking down the elements into manageable parts makes them easy to use. For example:
The insert code often specifies the shape, tolerance, and clamping system.
Recommendations for specific materials guide you in adjusting speed and feed rates.
Understanding these details empowers your machining process by delivering faster, more accurate results.
Applications of Carbide Inserts in Precision Machining
Carbide inserts play an necessary role in industries such as advanced material manufacturing, toolmaking, and precision assembly. Here are some practical applications:

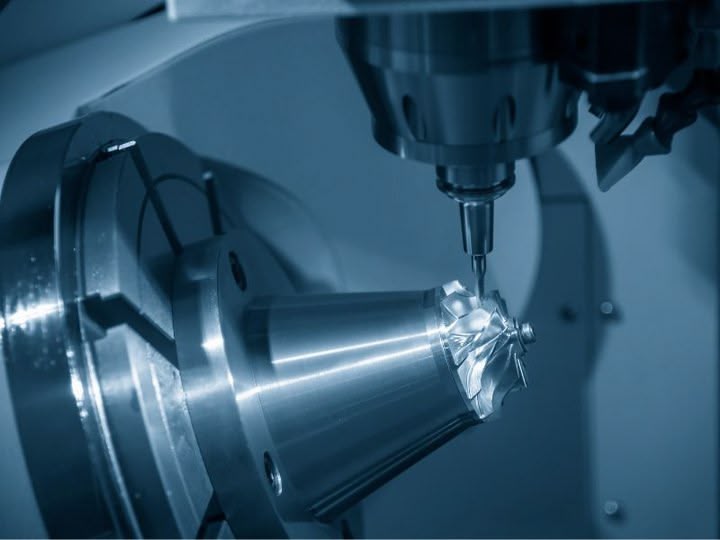

1. Milling Operations
Carbide inserts are widely used in milling to produce flat surfaces, grooves, and intricate shapes. Their durability ensures prolonged operation without frequent replacements, improving efficiency in batch production.
2. Turning Operations
Turning involves shaping materials by removing excess material with a spinning workpiece. The geometric precision of carbide inserts ensures smooth surface finish and dimensional accuracy in complex designs.
3. Drilling Processes
For industries requiring deep-hole drilling or precision bores, carbide inserts provide unmatched heat resistance to withstand high-speed operations.
4. Threading Applications
Manufacturers utilize carbide inserts for threading tasks, leveraging their edge strength to produce clear, accurate threads.
5. Superalloy Machining
Industries working with hard materials like titanium and nickel alloys frequently rely on carbide inserts due to their high wear resistance and ability to retain sharpness.
Choosing the Right Carbide Insert for Your Needs
Selecting the right carbide insert depends on your specific machining operation, material type, and desired outcome. Here’s a step-by-step process:
Define Your Application
Consider whether you're working on turning, milling, or finishing tasks. Each process requires specific insert shapes and sizes.
Understand Your Materials
Choose an insert grade that complements the material’s hardness and thermal properties.
Refer to the Chart
Consult the carbide insert chart for exact specifications suited to your application. Look for recommended speeds, feed rates, and tolerances that align with your project.
Prioritize Coatings
For high-speed production or abrasive materials, opt for coated carbide inserts to reduce wear and extend tool life.
Experiment and Optimize
While charts provide an excellent starting point, fine-tuning speed and feed rates through trial runs can achieve optimal results.
Best Practices for Maximizing Carbide Insert Performance
To get the most value from your carbide inserts, follow these best practices:
Routine Maintenance: Keep insert seats, clamping mechanisms, and tools clean to prevent wear and misalignment.
Proper Handling: Always handle inserts carefully to avoid accidental chipping.
Regular Inspections: Check inserts periodically for signs of wear or damage, replacing them before they cause defects.
Training the Team: Ensure machine operators are familiar with carbide charts and practices for improving machining accuracy.
Stay Ahead in Machining with SPP Industry
At SPP Industry, we understand that precision engineering and toolmaking require advanced solutions. That’s why we offer a comprehensive range of high-quality carbide inserts tailored to meet any manufacturing challenge.
Why Choose SPP Industry?
Global Excellence: With a reputation as a global leader in advanced materials manufacturing, we deliver superior quality.
Expertise: Our team works closely with clients to select carbide inserts that meet their unique needs.
Commitment to Innovation: We specialize in combining cutting-edge technology with operational excellence to optimize your machining results.
Closing Thoughts
Carbide insert charts are like roadmaps for machinists—guiding you toward the best decisions for efficiency, precision, and cost savings. By understanding their details and selecting the right inserts, you can position your operations for success in today’s competitive manufacturing environment.
If you're ready to enhance your machining capabilities, browse SPP Industry's wide array of carbide inserts and take your engineering projects to the next level.
